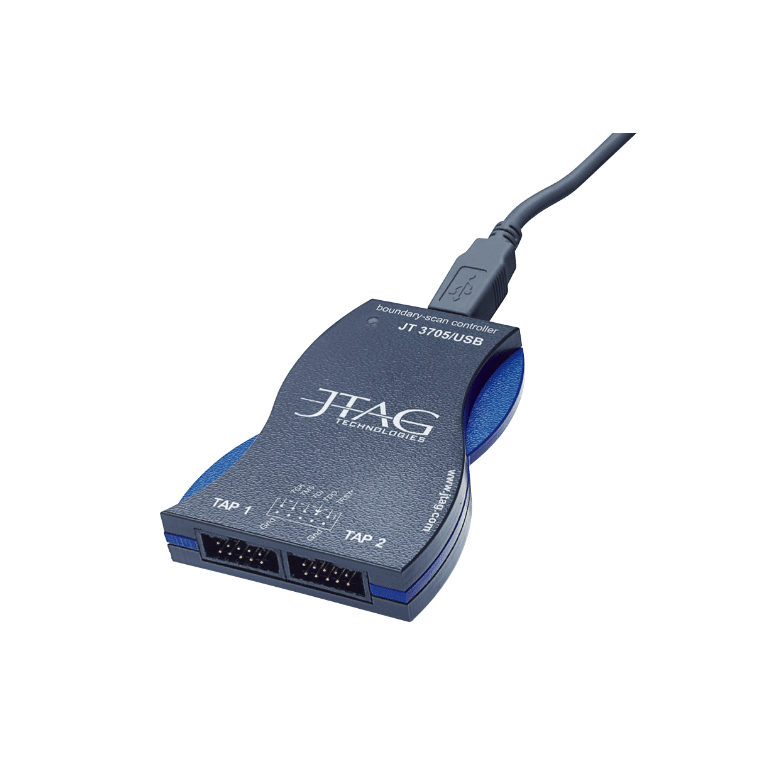

JT 3705/USB EXPLORER (TWO PORT)

מאפיינים מרכזיים

The JT 3705/USB Explorer is a low-cost two port USB powered boundary-scan controller interface specifically suited for low volume testing and in-system programming of (C)PLDs. Explorer supports two fully-compliant boundary-scan test access ports (TAPs) which can be synchronized for test purposes.

Features include 6MHz maximum TCK frequency and adjustable input and output thresholds.

The JT 3705/USB is support by ProVison‘s custom combined instrument feature that allows multiple controllers to act as one.

  • Fast test execution
  • Wide compatibility
  • Lightweight and pocket-sized
  • Low priced
  • Compatible with USB 1.1 and 2.0 formats
  • Two fully-compliant 1149.x TAPs
  • TCK up to 6 MHz
  • Programmable TAP voltage
  • 57 mm width x 79 mm depth x 16 mm height
  • Weight 49g
